Die Align ..... The ultimate tool for perfect and consistent die alignment

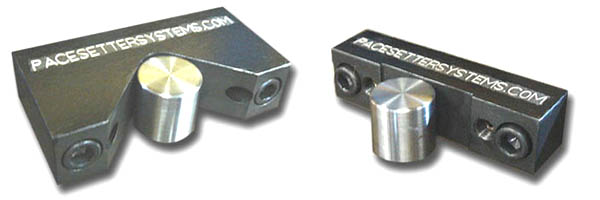

Die Align Kit: V-Block and Stop Block Image

This innovative tool makes it easy to accurately locate and center any die on your press (scroll this page down to see an example press, or click here).

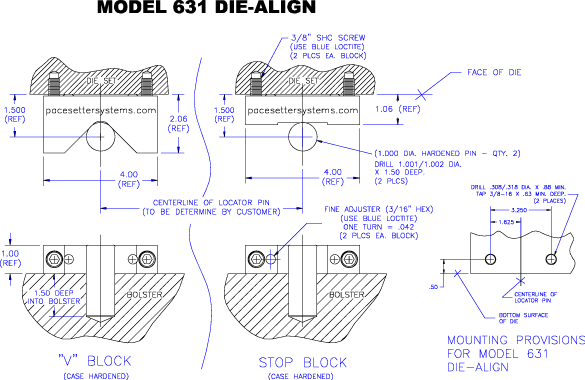

The V-Block mounts on the back of the die shoe and guides it left to right, and front to back around a pin (1-inch diameter) that's installed in the bolster.

The stop block rests on the other side of the die and helps square it evenly on the press.

Die-Align is designed to align a die of any size.

Totally eliminates manual alignment when used with the Power Pallet.


Click this button to request a quote right now! Click this button to request more information

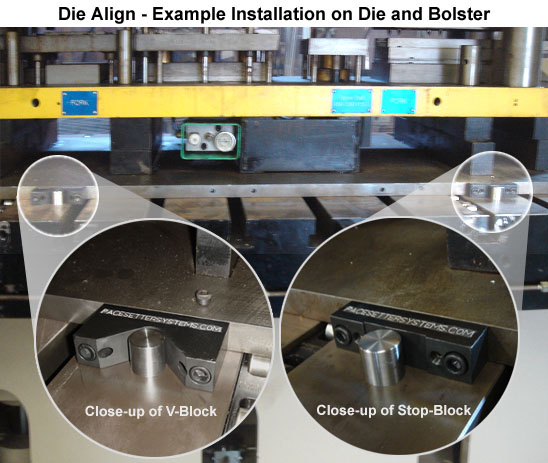

Example of Die Align installed in a working enviroment
